Design Patterns are core sets of interactions that are used repeatedly throughout the UX.

Drawer

Used for:

• Providing access to top level navigation links that may be too numerous for a Tabs pattern, or user-generated, (eg: Tabs, user accounts etc).

Characteristics:

• Provides access to top level navigation links that are usually user-configurable (eg: accounts in Email and Calendar, or tabs in Browser).
• Is also a great place to tuck secondary or power-user features, such as links to app Settings.
• Position: Should be positioned on left side of screen, but can be positioned on right in rare circumstances (eg: Browser).
• Open: should be opened via standard "Drawer" button, but other buttons can be used in rare circumstances (eg: numeric tabs button in Browser).
• Close: can be closed by tapping viewable area of the primary interface. And in future versions by swiping horizontally from bezel.
• Traditionally visually depicted as being one layer below the primary interface, and sliding in from the side via animation.
• Width: variable, but must always leave sufficient room for the "Drawer" button on the primary interface to remain fully visible.

Drawer 1

Entry Sheet

Used for:

• Editing a single setting that:
• Contains a large number of possible values. eg: Text entry forms, long lists,
• [or] Requires multipe inputs or selections eg: WiFi network connection process.

Characteristics:

• Occupies the full screen
• User should be given impression that they are on the same page, and that the Entry Sheet is merely a temporary modal overlay. They have not navigated one level deeper in the hierarchy.
  • To reinforce this...
  • Valid animations could include slide in from top, from bottom, cross fade, scale in, etc.
  • “Cancel” buttons are used instead of “Back”.
• Every element within the Entry Sheet must be related to adjusting the single setting; Settings Panels should not contain links to other pages or lists.
• Closing:
  • “Cancel”
  • Varies: “Done”, “Join”, “Send”, etc.

Dialogue: Entry Sheet 1

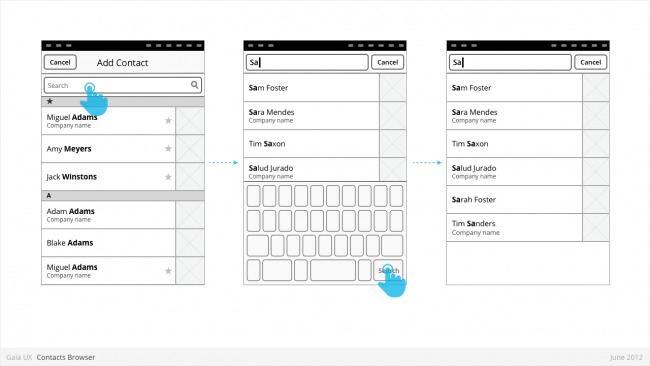

Contacts Browser 1

Input Areas

Used for:

• ...

Characteristics:

• ...

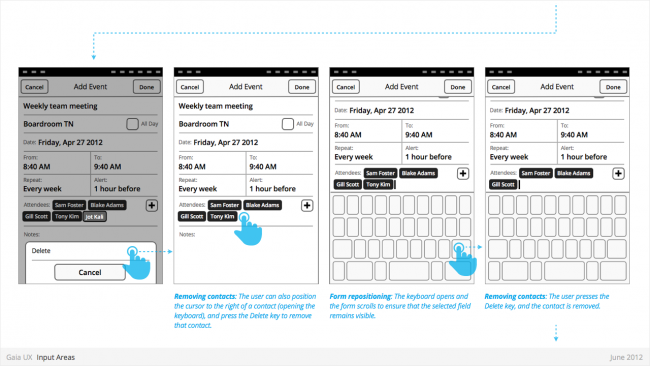

Input Areas 1

Input Areas 2

Input Areas 3

Input Areas 4

Input Areas 5

Input Areas 6

Multi-Select

Used for:

• Enables user to perform “bulk actions”, such as deleting 6 emails from a roll of 20, or selecting 3 photos to email to a friend.
• Is used on lists of items (eg: vertical list of emails in Inbox, or grid of photos in Gallery)

Characteristics:

• Is entered by...
• Is a “mode”, not a section. Animation and visual design should give user the impression that they are in a temporary mode within the original view, not that there are in a differerent view.

Can be called “Edit” or “Select” mode, depending on the use case. Header text should indicate action being taken (eg: “Select photos”). Once an item has been selected, text should update to “X selected”, where X = quantity of selected items.

• Closes once the user:
  • ...completes one of the available actions (eg: “Delete”).
  • ...or taps “Cancel” button.
• Closing resturns user to the previous view.
• If user has taken action (eg: delete 3 message threads), a Toast should appear, confirming the action.

States

• Normal
• Focused
• Disabled

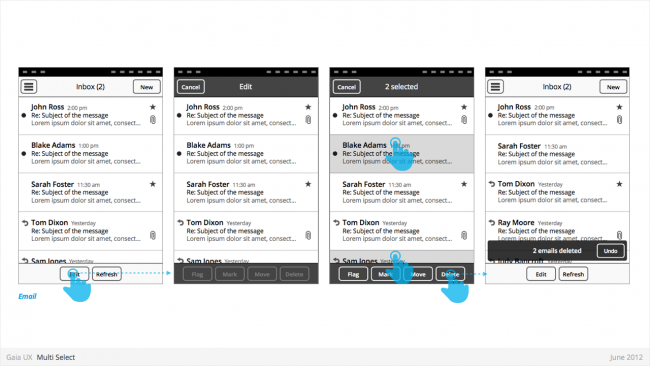

MultiSelect 1

Search

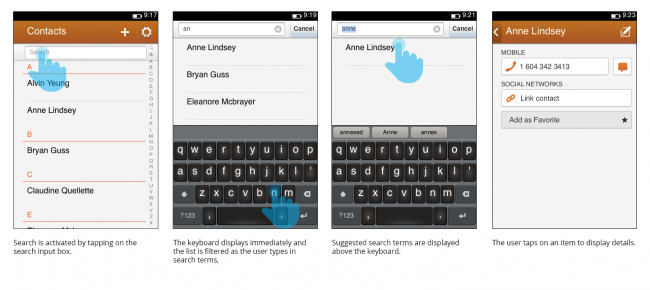

Search in Contacts app
